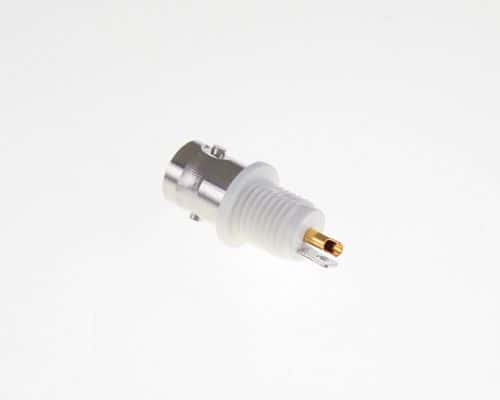

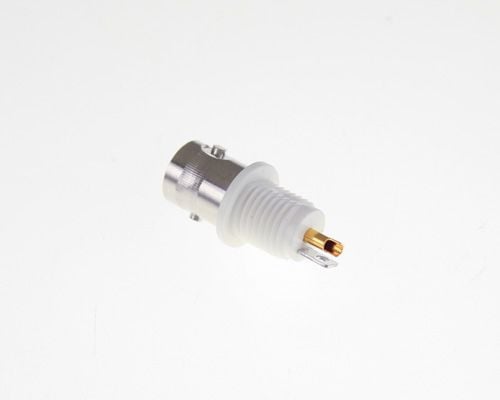

Isolated bulkhead jack for coaxial applications, featuring a straight orientation and 50 Ohm impedance. Constructed with a brass body plated in nickel and bronze contacts plated in gold, this connector offers 500 mating cycles. It operates within a temperature range of -40°C to 85°C and has a voltage rating of 500V. Termination is achieved via solder, with a white housing and polyoxymethylene dielectric.
FrequencyN/A
Voltage Rating500V
MountingPanel, Bulkhead, Rear Side Nut
Quick Jump:
Technical Specifications
Winchester Bomar 326R515 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Dielectric Material
Polyoxymethylene
Housing Color
White
Impedance
50R
Insertion Loss
0.2dB
Lead Free
Lead Free
Mating Cycles
500
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel, Bulkhead, Rear Side Nut
Number of Ports
1
Operating Frequency
N/A
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Plating
Nickel
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Termination
Solder
Voltage Rating
500V
Compliance
RoHS
Not Compliant
Datasheet
Winchester Bomar 326R515 Datasheet
Download the complete datasheet for Winchester Bomar 326R515 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
