Technical Specifications
Wurth Electronics 430156095726 technical specifications.
General
Actuator Material
Polymer, Liquid Crystal Polymer
Actuator Type
Standard
Contact Material
Steel
Contact Type
1 maker
Current Rating
50mA
Height
9.5mm
Illumination Type
Non-Illuminated, Illuminated
Length
6.2mm
Max Operating Temperature
85°C
Mechanical Life
200000Cycles
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Force
260gf
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
WS-TATV
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 430156095726 Datasheet
Download the complete datasheet for Wurth Electronics 430156095726 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

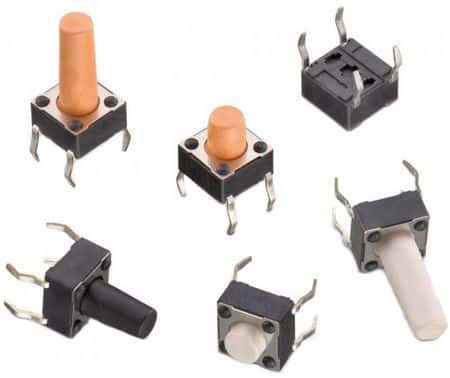

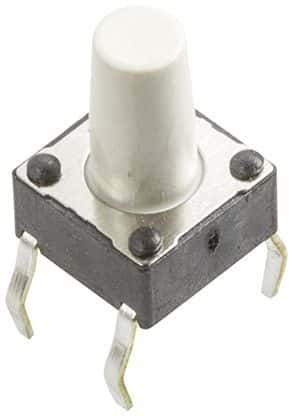

Product Images
