Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Wurth Electronics 61303221021 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 32 |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WR-PHD |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 61303221021 Datasheet
Download the complete datasheet for Wurth Electronics 61303221021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

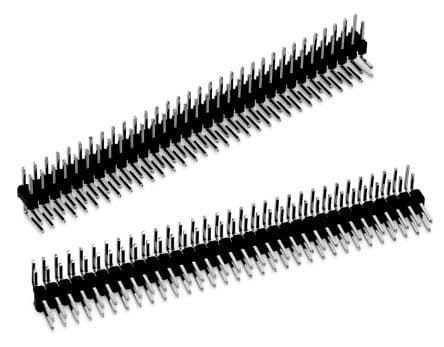

Product Images
