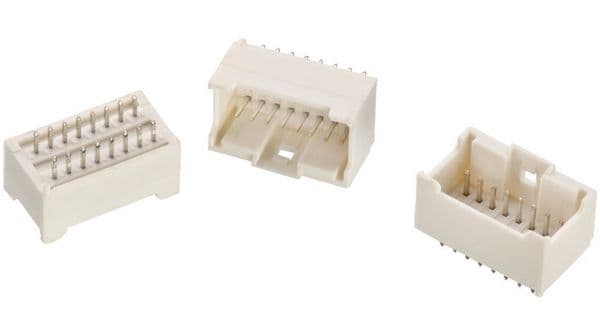

2mm pitch shrouded header with 26 male pin contacts. Features a white PBT insulation material and copper alloy contacts with tin plating. Rated for 3A current and 250V voltage, with a UL94 V-0 flammability rating. Through-hole mounting with a press-fit termination method. Dimensions include a 9.75mm height, 11.5mm length, and 29.4mm width.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Wurth Electronics 62402621622 technical specifications.
General
Color
White
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Copper Alloy, Copper
Contact Plating
Tin
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Flammability Rating
UL94 V-0
Gender
Male
Height
9.75mm
Insulation Color
White
Insulation Material
PBT
Length
11.5mm
Mated Stacking Heights
11.6mm
Mount
Through Hole
Number of Contacts
26
Number of Positions
26
Number of Rows
2
Pitch
2mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WR-WTB
Termination
Press-Fit
Voltage Rating
250V
Width
29.4mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 62402621622 Datasheet
Download the complete datasheet for Wurth Electronics 62402621622 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
