MountingSurface Mount, Through Hole, Flanges, Horizontal
Quick Jump:
Technical Specifications

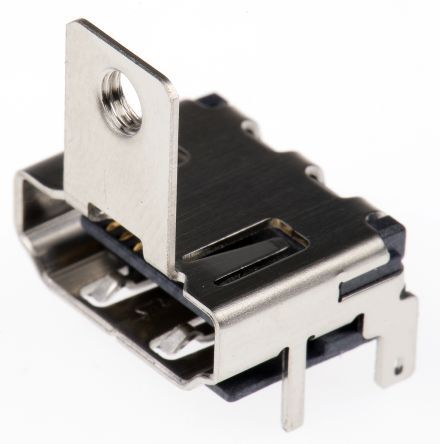

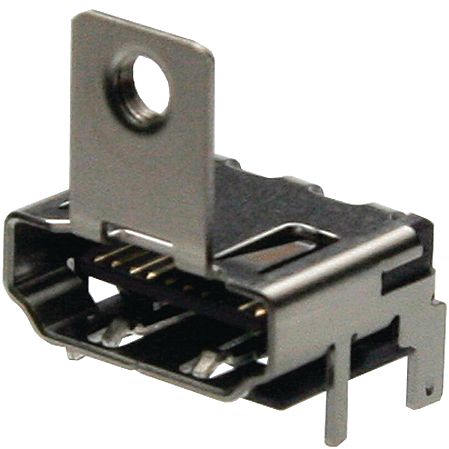

Wurth Electronics 685119135725 technical specifications.
General
| Body Material | Brass |
| Contact Plating | Gold |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount, Through Hole, Flanges, Horizontal |
| Number of Contacts | 19 |
| Number of Ports | 1 |
| Number of Positions | 19 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WR-COM |
| Shielding | Shielded |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 685119135725 Datasheet
Download the complete datasheet for Wurth Electronics 685119135725 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
