26-position, 1.00mm pitch FPC connector with a right-angle orientation. Features a surface mount termination and a tin-plated bronze contact material. Rated for 1A current and 125V voltage, with a maximum operating temperature of 85°C. Housing and actuator are beige and brown respectively, constructed from polyphenylene. UL94 V-0 flammability rating and RoHS compliant.
Voltage Rating125V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 68612614122 technical specifications.
General
Actuator Color
Brown
Actuator Material
Polyphenylene
Contact Material
Bronze, Tin
Contact Plating
Tin
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Beige
Length
34mm
Mating Cycles
25
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Number of Contacts
26
Number of Positions
26
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Cut Tape
Pitch
0.039inch
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
WR-FPC
Termination
Solder
Voltage Rating
125V
Width
2.95mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 68612614122 Datasheet
Download the complete datasheet for Wurth Electronics 68612614122 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

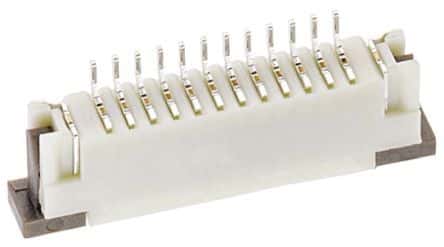

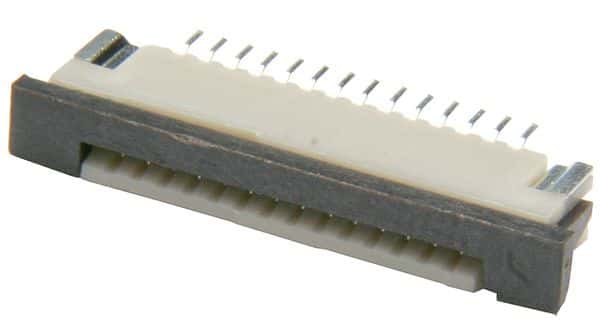

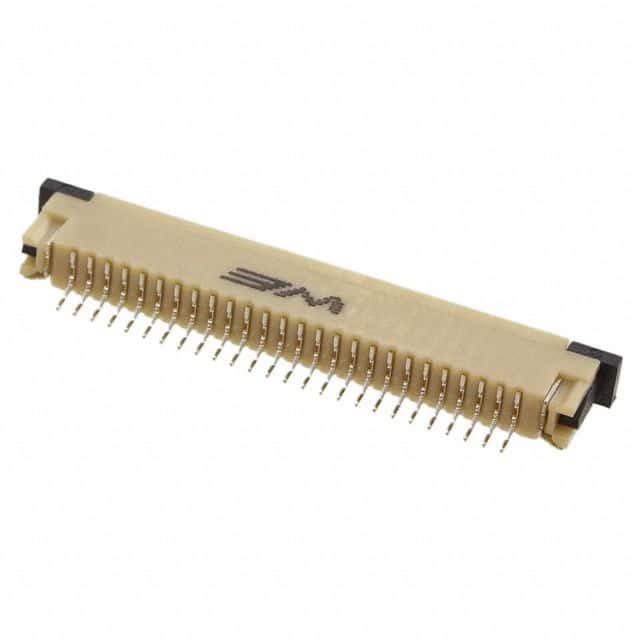

Product Images
