6-position, 1mm pitch flat flex cable with a 1A current rating and 60V voltage rating. Features copper contacts with tin plating, a straight orientation, and solder termination. This white cable measures 50mm in length and 7mm in width, operating between -30°C and 85°C. RoHS compliant.
Voltage Rating60V
Current Rating1A
Quick Jump:
Technical Specifications
Wurth Electronics 686606050001 technical specifications.
General
Color
White
Contact Material
Copper
Contact Plating
Tin
Current Rating
1A
Gender
Male
Length
50mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Number of Conductors
6
Number of Contacts
6
Number of Cores
6
Number of Poles
6
Number of Rows
2
Number of Strands
1
Number of Ways
6
Orientation
Straight
Pitch
1mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WR-FCC
Termination
Solder
Voltage Rating
60V
Width
7mm
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 686606050001 Datasheet
Download the complete datasheet for Wurth Electronics 686606050001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

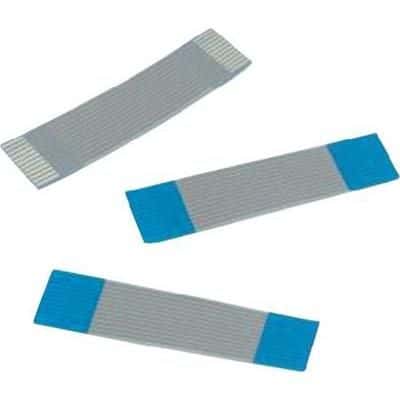

Product Images
