Flat Flex Cable (FFC) with 10 conductors and 10 contacts, featuring a 1mm pitch and 11mm width. This straight, male connector is designed for solder termination and offers a 1A current rating and 60V voltage rating. Constructed with copper contacts plated in tin, it operates within a temperature range of -30°C to 85°C and has a length of 200mm. The cable is white and RoHS compliant.
Voltage Rating60V
Current Rating1A
Quick Jump:
Technical Specifications
Wurth Electronics 686610200001 technical specifications.
General
Color
White
Contact Material
Copper
Contact Plating
Tin
Current Rating
1A
Gender
Male
Length
200mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Number of Conductors
10
Number of Contacts
10
Number of Cores
10
Number of Poles
10
Number of Rows
2
Number of Strands
1
Number of Ways
10
Orientation
Straight
Pitch
1mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WR-FCC
Termination
Solder
Voltage Rating
60V
Width
11mm
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 686610200001 Datasheet
Download the complete datasheet for Wurth Electronics 686610200001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

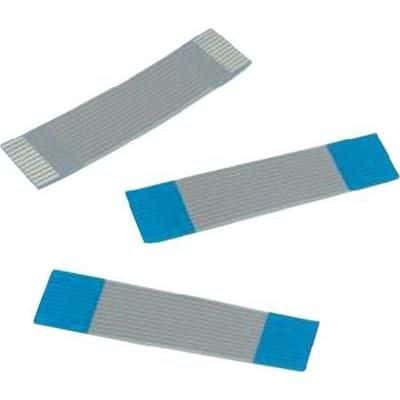

Product Images
