Technical Specifications

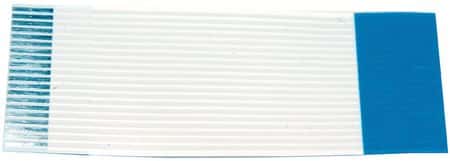

Wurth Electronics 686720050001 technical specifications.
General
Color
White
Contact Material
Copper
Contact Plating
Tin
Current Rating
1A
Gender
Male
Length
50mm
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Number of Conductors
20
Number of Contacts
20
Number of Cores
20
Number of Poles
20
Number of Rows
1
Number of Strands
1
Number of Ways
20
Orientation
Straight
Pitch
1mm
Reach SVHC Compliant
Unknown
Series
WR-FCC
Termination
Solder
Voltage Rating
60V
Width
21mm
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 686720050001 Datasheet
Download the complete datasheet for Wurth Electronics 686720050001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
