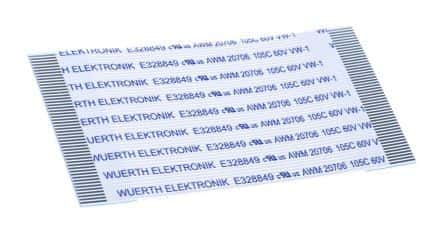

50-conductor, 0.5mm pitch Flat Flex cable jumper with a 50mm length and 500mA current rating. Features tin-plated copper contacts on the same side, a straight orientation, and a 60V voltage rating. Operates within a temperature range of -30°C to 105°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 687650050002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | White |
| Contact Location | Same Side |
| Contact Material | Copper |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 50mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Number of Conductors | 50 |
| Number of Contacts | 50 |
| Number of Cores | 50 |
| Number of Poles | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Number of Strands | 1 |
| Number of Ways | 50 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 0.5mm |
| Reach SVHC Compliant | Unknown |
| Series | WR-FCC |
| Termination | Solder |
| Voltage Rating | 60V |
| Width | 51mm |
| Wire/Cable Type | Flat Flex |
| RoHS | Compliant |
