6-conductor, 0.5mm pitch flat flex cable, 200mm length, 3.5mm width, featuring tin-plated copper contacts on opposite sides. Rated for 60V and 500mA, this male connector operates between -30°C and 105°C. The straight orientation and cable termination are suitable for various electronic applications.
Voltage Rating60V
Current Rating500mA
Quick Jump:
Technical Specifications
Wurth Electronics 687706200002 technical specifications.
General
Color
White
Contact Location
Opposite Side
Contact Material
Copper
Contact Plating
Tin
Current Rating
500mA
Gender
Male
Length
200mm
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Number of Conductors
6
Number of Contacts
6
Number of Cores
6
Number of Poles
6
Number of Rows
1
Number of Strands
1
Number of Ways
6
Orientation
Straight
Pitch
0.5mm
Reach SVHC Compliant
Unknown
Series
WR-FCC
Termination
Cable
Voltage Rating
60V
Width
3.5mm
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 687706200002 Datasheet
Download the complete datasheet for Wurth Electronics 687706200002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

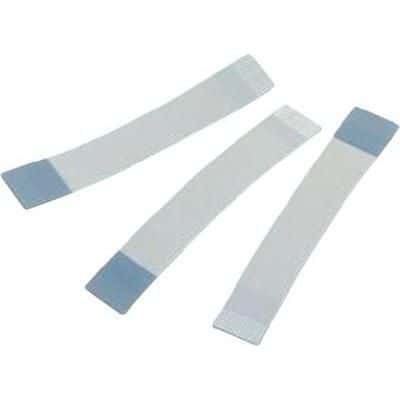

Product Images
