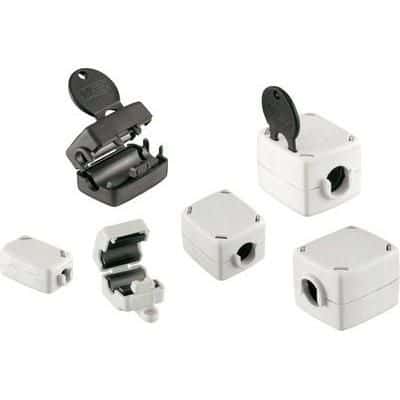

Ferrite core for EMI suppression, featuring a 5mm inside diameter and 320 Ohm impedance. Operating from 1MHz to 1GHz, this hinged ferrite core is constructed from ferrite and steel, with a black color. Designed for cable mounting, it measures 40.5mm in length, 18.2mm in width, and 23.7mm in height, accommodating wire/cable diameters up to 5mm. The component operates within a temperature range of -25°C to 105°C and is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 74271111S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Color | Black |
| Core Material | Ferrite |
| Height | 23.7mm |
| Inside Diameter | 5mm |
| Lead Free | Lead Free |
| Length | 40.5mm |
| Material | Steel |
| Max Frequency | 1GHz |
| Min Frequency | 1MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Cable, Free Hanging |
| Package Quantity | 20 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Series | Star-Tec |
| Shape | Square |
| Weight | 33.46g |
| Width | 18.2mm |
| Wire/Cable Diameter | 5mm |
| RoHS | Compliant |
Download the complete datasheet for Wurth Electronics 74271111S to view detailed technical specifications.
