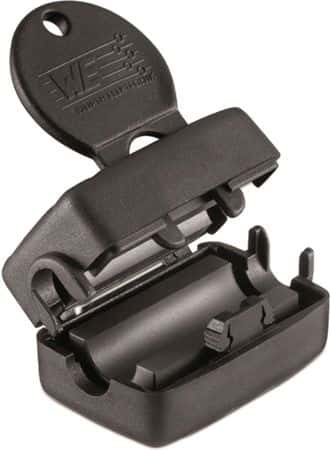

Ferrite core for EMI suppression, featuring a 241 Ohm impedance at 1MHz to 1GHz frequency range. This hinged, square-shaped core is constructed from steel with a black finish, measuring 21mm in width, 24.5mm in height, and 40.5mm in length. Designed for free-hanging mounting, it accommodates wire or cable diameters up to 8.5mm. Operating within a temperature range of -25°C to 105°C, this component is supplied in trays of 100 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 74271132S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Color | Black |
| Height | 24.5mm |
| Impedance | 241R |
| Length | 40.5mm |
| Material | Steel |
| Max Frequency | 1GHz |
| Min Frequency | 1MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Series | Star-Tec |
| Shape | Square |
| Tolerance | 25% |
| Weight | 33.86g |
| Width | 21mm |
| Wire/Cable Diameter | 8.5mm |
| RoHS | Not Compliant |
