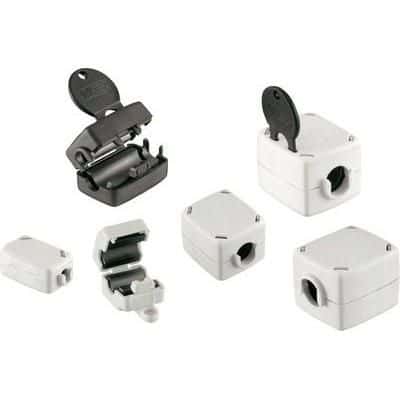

Ferrite core for EMI suppression, featuring a hinged design for easy cable installation. Operating from 1MHz to 1GHz, this component offers 265 Ohms impedance and is constructed with ferrite core material and a steel casing. Its dimensions include a 42.2mm length, 33.5mm width, 28.8mm height, and a 12.5mm inside diameter suitable for cables up to 12.5mm in diameter. Rated for operation between -25°C and 105°C, it is RoHS compliant and supplied in trays of 20 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 74271222S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Color | Black |
| Core Material | Ferrite |
| Height | 28.8mm |
| Inside Diameter | 12.5mm |
| Length | 42.2mm |
| Material | Steel |
| Max Frequency | 1GHz |
| Min Frequency | 1MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Cable, Free Hanging |
| Package Quantity | 20 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Star-Tec |
| Shape | Square |
| Weight | 80.26g |
| Width | 33.5mm |
| Wire/Cable Diameter | 12.5mm |
| RoHS | Not Compliant |
Download the complete datasheet for Wurth Electronics 74271222S to view detailed technical specifications.
