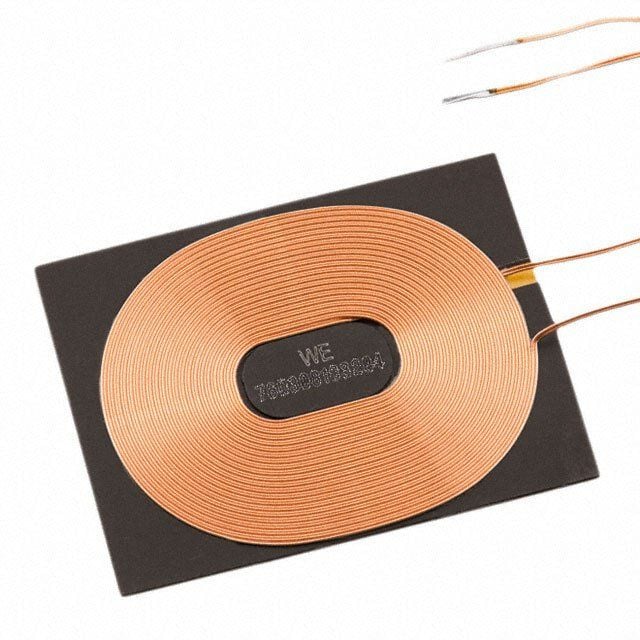

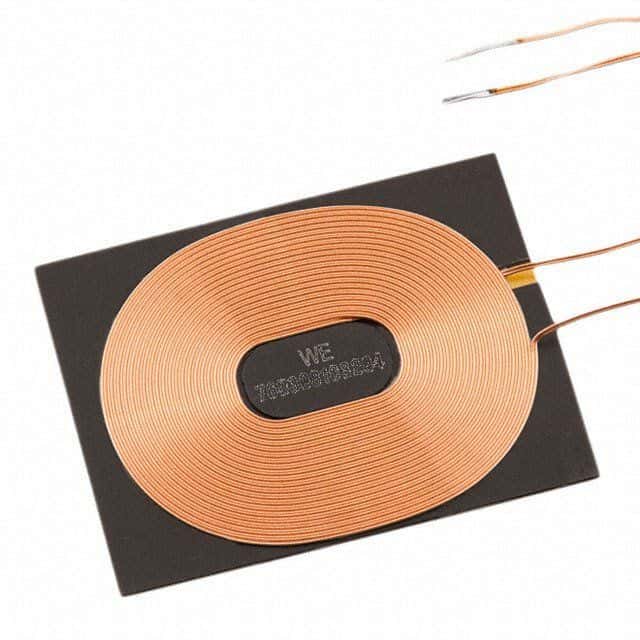

The Wurth Electronics inductor has a current rating of 2A and a DC resistance of 430mR. It features an inductance of 16.7uH with a tolerance of 10%. The inductor measures 38.5mm in length, 30.5mm in width, and 0.83mm in height. It operates within a temperature range of -20°C to 105°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 760308103204 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 3830 |
| Current Rating | 2A |
| DC Resistance (DCR) | 430mR |
| Height | 0.83mm |
| Inductance | 16.7uH |
| Inductance Tolerance | 10% |
| Length | 38.5mm |
| Logic Function | Receiver |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Package Quantity | 192 |
| Packaging | Bulk |
| Q Factor | 32 |
| Reach SVHC Compliant | Unknown |
| Resistance | 290mR |
| RoHS Compliant | Yes |
| Saturation Current | 4A |
| Self Resonant Frequency | 11MHz |
| Series | 1 |
| Tolerance | 10% |
| Width | 30.5mm |
| RoHS | Compliant |
