Yamaichi
FLEX-B240-7/0.1
YAMAICHI FLEX-B240-7/0.1 Ribbon Cable, Bonded Flat, Per M, Grey, 40 Core, 30 AWG, 0.055 mm
Package200
Voltage Rating150V
Current Rating500mA
MountingCable
Quick Jump:
Technical Specifications
Yamaichi FLEX-B240-7/0.1 technical specifications.
General
Package/Case
200
Color
Grey
Conductor Material
Copper
Current Rating
500mA
Impedance
71R
Inductance
0.48uH
Jacket Material
PVC
Max Operating Temperature
105°C
Mount
Cable
Number of Conductors
40
Number of Cores
40
Propagation Delay
5.4ns
Reach SVHC Compliant
No
Series
OKIFLEX
Voltage Rating
150V
Wire/Cable Gauge
30AWG
Wire/Cable Type
Ribbon, Flat, Flat Flex
Compliance
RoHS
Compliant
Datasheet
Yamaichi FLEX-B240-7/0.1 Datasheet
Download the complete datasheet for Yamaichi FLEX-B240-7/0.1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

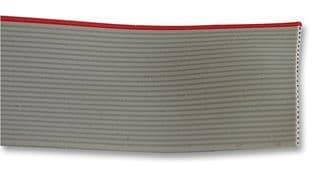

Product Images
