Technical Specifications
Yamaichi NFP-80A-0122BF technical specifications.
General
| Contact Material | Copper Alloy, Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Gender | Male |
| Material | Polybutylene |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Contacts | 80 |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| Series | NFP |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
Yamaichi NFP-80A-0122BF Datasheet
Download the complete datasheet for Yamaichi NFP-80A-0122BF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

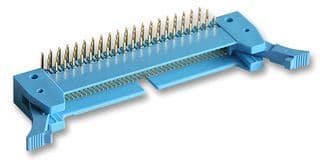

Product Images
