25MHz SMD crystal oscillator with 18pF load capacitance and 30ppm frequency tolerance. Features a 40 Ohm ESR and operates across a -40°C to 85°C temperature range. This surface mount component is supplied in tape and reel packaging.
Frequency25MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABLS2-25.000MHZ-D4YF-T technical specifications.
General
| Depth | 4.7mm |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 25MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 11.4mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 25 MHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Series | ABLS2 |
| Series Resistance | 40R |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABLS2-25.000MHZ-D4YF-T Datasheet
Download the complete datasheet for Abracon ABLS2-25.000MHZ-D4YF-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

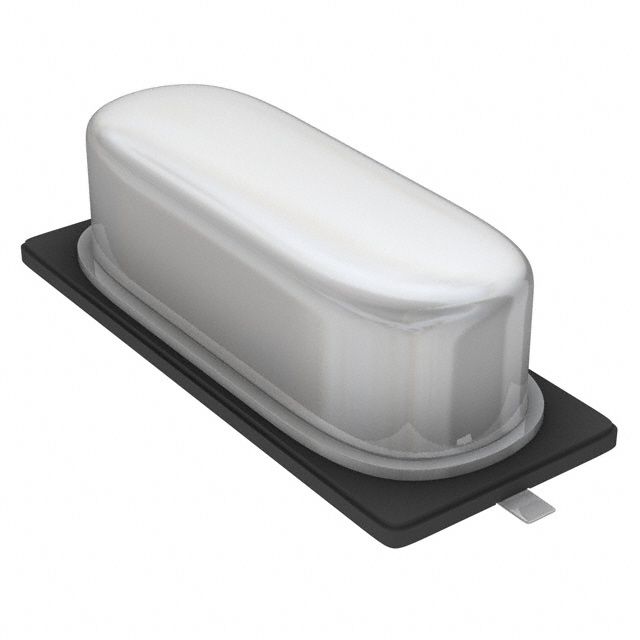

Product Images
