Frequency20MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM7-20.000MHZ-B4-T technical specifications.
General
Package/Case
CSMD
Depth
3.5mm
ESR (Equivalent Series Resistance)
50R
Frequency
20MHz
Frequency Stability
50ppm
Frequency Tolerance
30ppm
Height
0.055inch
Length
6mm
Load Capacitance
18pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Series
ABM7
Termination
SMD/SMT
Tolerance
30ppm
Width
0.138inch
Compliance
RoHS
Compliant
Datasheet
Abracon ABM7-20.000MHZ-B4-T Datasheet
Download the complete datasheet for Abracon ABM7-20.000MHZ-B4-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

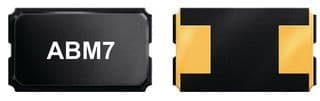

Product Images
