32kHz SMD crystal oscillator with 12.5pF load capacitance and 30ppm frequency tolerance. Features a compact 8mm x 3.8mm x 2.5mm SMD/SMT package, operating from -40°C to 85°C. Equivalent Series Resistance (ESR) is 50kR. Supplied on tape and reel for surface mount applications. RoHS compliant.
Frequency32kHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABS25-32.000KHZ-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 3.8mm |
| ESR (Equivalent Series Resistance) | 50kR |
| Frequency | 32kHz |
| Frequency Tolerance | 30ppm |
| Height | 2.5mm |
| Length | 8mm |
| Load Capacitance | 12.5pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ABS25 |
| Series Resistance | 50kR |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 3.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABS25-32.000KHZ-T Datasheet
Download the complete datasheet for Abracon ABS25-32.000KHZ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

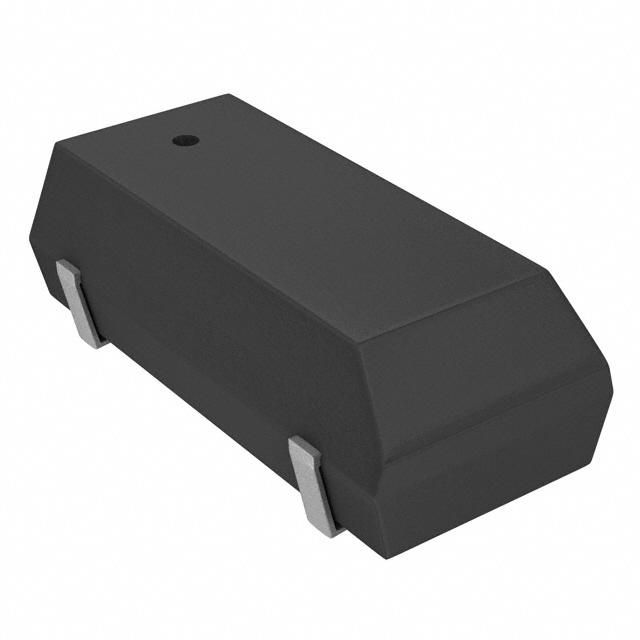

Product Images
