Surface mount fixed inductor with 6.8nH inductance, designed for RF applications. Features a ceramic core, 300mA current rating, and 0.25 Ohm DC resistance. Operates across a -55°C to 125°C temperature range with a Q factor of 9 at 100MHz. Packaged in a 0402 (1005 metric) case, this unshielded component is supplied on tape and reel.
Package0402
Current Rating300mA
MountingSurface Mount
Inductance6.8nH
Quick Jump:
Technical Specifications
Abracon AIMC-0402-6N8S-T technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ceramic
Current Rating
300mA
DC Resistance (DCR)
300mR
Height
0.5mm
Height - Seated (Max)
0.026inch
Inductance
6.8nH
Lead Free
Lead Free
Length
0.039inch
Max DC Current
300mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
10000
Packaging
Tape and Reel
Q Factor
9
RoHS Compliant
Yes
Self Resonant Frequency
3.9GHz
Series
AIMC-0402
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Abracon AIMC-0402-6N8S-T Datasheet
Download the complete datasheet for Abracon AIMC-0402-6N8S-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

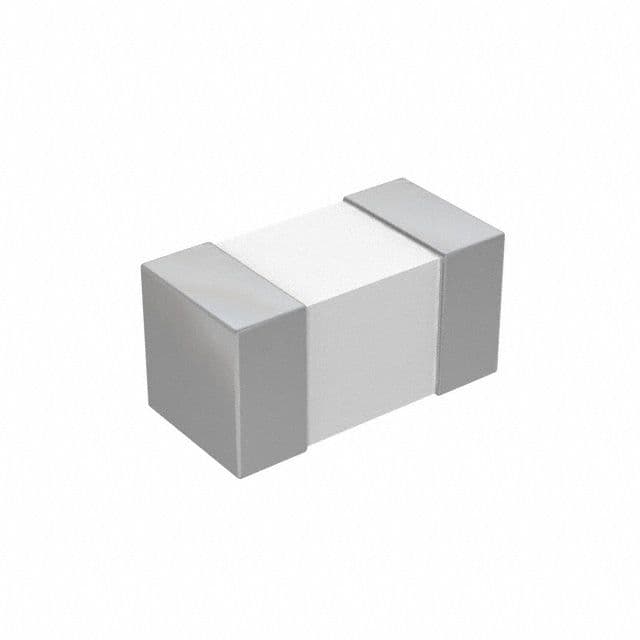

Product Images
