PackageRadial
MountingThrough Hole
Inductance6.8uH
Quick Jump:
Technical Specifications
Abracon AIRD-02-6R8M technical specifications.
General
Package/Case
Radial
Core Material
Ferrite
DC Resistance (DCR)
7mR
Diameter
21mm
Inductance
6.8uH
Lead Pitch
19mm
Lead/Base Style
Radial
Length
21mm
Max DC Current
39A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Packaging
Bulk
Radiation Hardening
No
Saturation Current
39A
Series
AIRD-02
Shielding
Unshielded
Termination
Radial
Test Frequency
1kHz
Tolerance
20%
Compliance
RoHS
Not CompliantNo
Datasheet
Abracon AIRD-02-6R8M Datasheet
Download the complete datasheet for Abracon AIRD-02-6R8M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

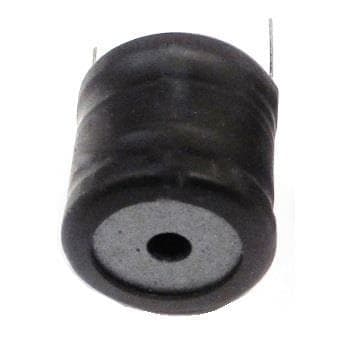

Product Images
