Abracon
AIRD-03-122K
General Purpose Inductor, 1200uH, 10%, 1 Element, Ferrite-Core, RADIAL LEADED, ROHS COMPLIANT
PackageRadial
MountingThrough Hole
Inductance1.2mH
Quick Jump:
Technical Specifications
Abracon AIRD-03-122K technical specifications.
General
Package/Case
Radial
Core Material
Ferrite
DC Resistance (DCR)
462mR
Diameter
28mm
Inductance
1.2mH
Lead Free
Lead Free
Lead Pitch
22mm
Lead/Base Style
Radial
Length
21mm
Max DC Current
3.7A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
3.7A
Series
AIRD-03
Shielding
Unshielded
Termination
Radial
Test Frequency
1Hz
Tolerance
10%
Compliance
RoHS
Compliant
Datasheet
Abracon AIRD-03-122K Datasheet
Download the complete datasheet for Abracon AIRD-03-122K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

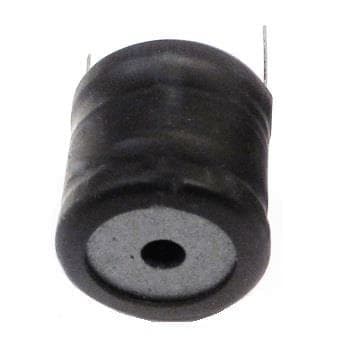

Product Images
