Surface mount fixed inductor featuring 12µH inductance with a 10% tolerance, tested at 1MHz. This unshielded, wirewound power inductor offers a maximum DC current of 610mA and a DC resistance of 674mΩ. Its ferrite core is housed in a 1210 (3225 metric) case with dimensions of 3.2mm (L) x 2.5mm (W) x 2.7mm (D) and a height of 2mm. Operating within a temperature range of -25°C to 85°C, this RoHS compliant component is supplied on tape and reel.
Package1210
MountingSurface Mount
Inductance12uH
Quick Jump:
Technical Specifications
Abracon AISC-1210H-120K-T technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Core Material
Ferrite
DC Resistance (DCR)
674mR
Depth
2.7mm
Height
2mm
Inductance
12uH
Length
3.2mm
Max DC Current
610mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Package Quantity
1500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
26MHz
Series
AISC-1210H
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1MHz
Tolerance
10%
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Abracon AISC-1210H-120K-T Datasheet
Download the complete datasheet for Abracon AISC-1210H-120K-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

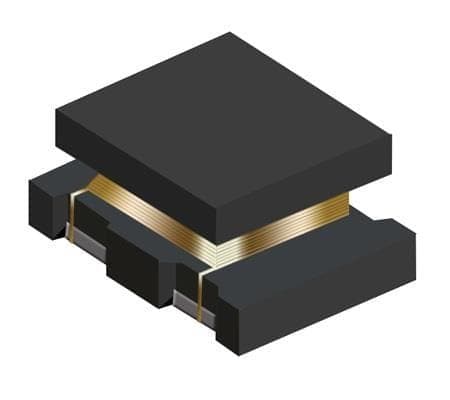

Product Images
