Abracon
AISC-1210H-4R7N-T
Inductor Power Molded/Unshielded Wirewound 4.7uH 30% 1MHz 0.9A 0.247Ohm DCR 1210 Automotive T/R
Package1210
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Abracon AISC-1210H-4R7N-T technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Core Material
Ferrite
DC Resistance (DCR)
247mR
Depth
2.7mm
Height
2mm
Inductance
4.7uH
Length
3.2mm
Max DC Current
900mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
43MHz
Series
AISC-1210H
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1MHz
Tolerance
30%
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Abracon AISC-1210H-4R7N-T Datasheet
Download the complete datasheet for Abracon AISC-1210H-4R7N-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

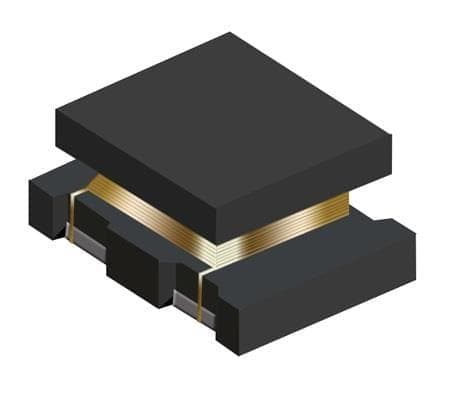

Product Images
