CMOS SMD crystal oscillator operating at 32.768kHz with a frequency stability of 25ppm. Features a 1.8V operating supply voltage, ranging from 1.71V to 1.89V, and a maximum supply current of 1.5mA. Designed for surface mount applications with a 2.5mm length, 2mm depth, and 15pF load capacitance. This lead-free component is packaged on tape and reel and operates within a temperature range of -40°C to 85°C.
Frequency32.768kHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASDK2-32.768KHZ-LRT technical specifications.
General
Package/Case
CSMD
Depth
2mm
Frequency
32.768kHz
Frequency Stability
25ppm
Lead Free
Lead Free
Length
2.5mm
Load Capacitance
15pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
1.5mA
Max Supply Voltage
1.89V
Min Supply Voltage
1.71V
Mount
Surface Mount
Operating Supply Voltage
1.8V
Packaging
Tape and Reel
Radiation Hardening
No
Series
ASDK
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Abracon ASDK2-32.768KHZ-LRT Datasheet
Download the complete datasheet for Abracon ASDK2-32.768KHZ-LRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

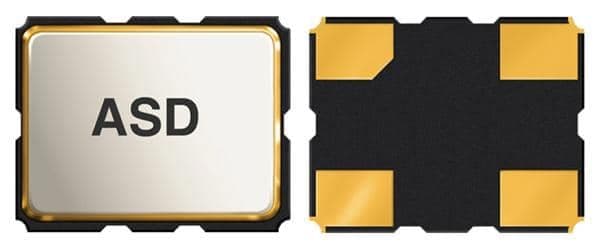

Product Images
