Surface mount crystal oscillator operating at 50MHz with CMOS output. Features a 3.2mm x 2.5mm SMD package, 3.3V supply voltage, and 15pF load capacitance. Offers frequency stability of 100ppm over an operating temperature range of -20°C to 70°C. Maximum supply current is 19mA. Packaged on tape and reel.
Frequency50MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASE-50.000MHZ-ET technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 2.5mm |
| Frequency | 50MHz |
| Frequency Stability | 100ppm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 15pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 19mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | ASE |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ASE-50.000MHZ-ET Datasheet
Download the complete datasheet for Abracon ASE-50.000MHZ-ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

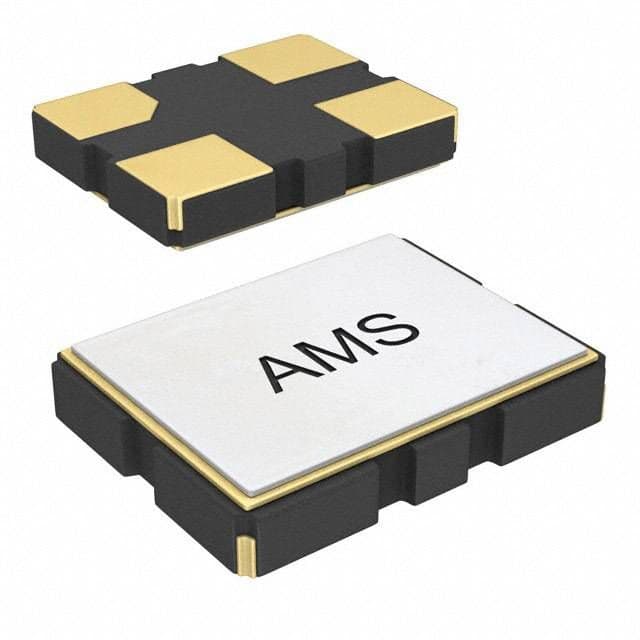

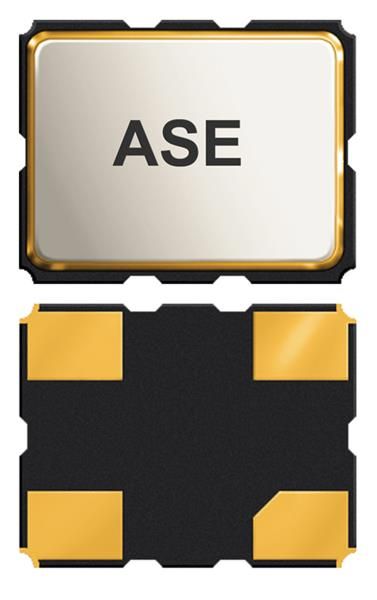

Product Images
