Abracon
ASPI-0320S-2R2N-T3
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz 1.33A 0.106Ohm DCR 1212 T/R
PackageNonstandard
Current Rating1.33A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Abracon ASPI-0320S-2R2N-T3 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
1.33A
DC Resistance (DCR)
106mR
Height
2mm
Height - Seated (Max)
0.079inch
Inductance
2.2uH
Length
0.126inch
Max DC Current
1A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
1.3A
Series
ASPI-0320S
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-0320S-2R2N-T3 Datasheet
Download the complete datasheet for Abracon ASPI-0320S-2R2N-T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

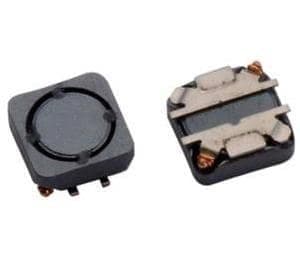

Product Images
