Abracon
ASPI-0320S-3R3N-T3
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 1.24A 0.125Ohm DCR 1212 T/R
PackageNonstandard
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Abracon ASPI-0320S-3R3N-T3 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
125mR
Height
2mm
Inductance
3.3uH
Length
3.2mm
Max DC Current
1A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
1.1A
Series
ASPI-0320S
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-0320S-3R3N-T3 Datasheet
Download the complete datasheet for Abracon ASPI-0320S-3R3N-T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

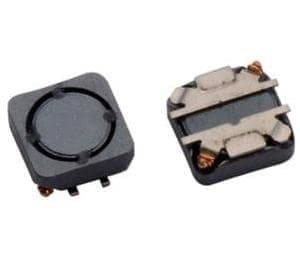

Product Images
