PackageNonstandard
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Abracon ASPI-0418S-2R2N-T3 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
80mR
Height
1.8mm
Inductance
2.2uH
Length
4.2mm
Max DC Current
1A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
1.6A
Series
ASPI-0418S
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
4.2mm
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-0418S-2R2N-T3 Datasheet
Download the complete datasheet for Abracon ASPI-0418S-2R2N-T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

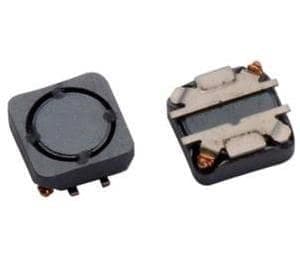

Product Images
