Abracon
ASPI-0615FS-150M-T2
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1.2A 0.12Ohm DCR 2424 T/R
PackageNonstandard
MountingSurface Mount
Inductance15uH
Quick Jump:
Technical Specifications
Abracon ASPI-0615FS-150M-T2 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
120mR
Height
2mm
Inductance
15uH
Length
6mm
Max DC Current
1.35A
Max Operating Temperature
120°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
1.3A
Series
ASPI-0615FS
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-0615FS-150M-T2 Datasheet
Download the complete datasheet for Abracon ASPI-0615FS-150M-T2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

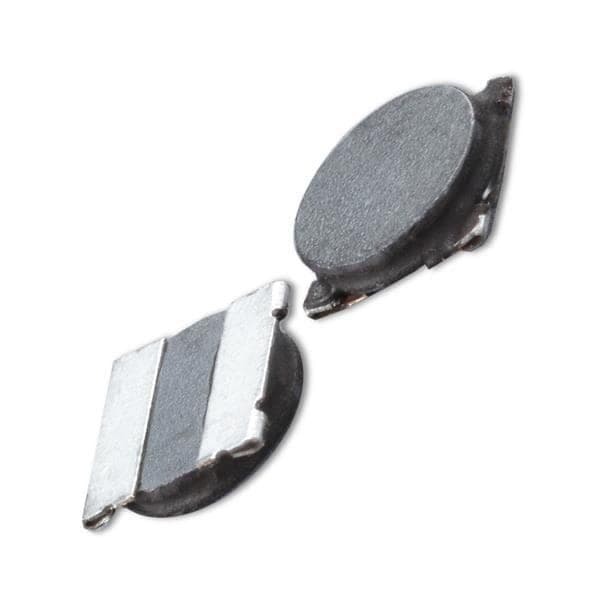

Product Images
