PackageNonstandard
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Abracon ASPI-3012S-4R7N-T technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
120mR
Height
1.2mm
Inductance
4.7uH
Length
3mm
Max DC Current
1.24A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
900mA
Self Resonant Frequency
61MHz
Series
ASPI-3012S
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-3012S-4R7N-T Datasheet
Download the complete datasheet for Abracon ASPI-3012S-4R7N-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

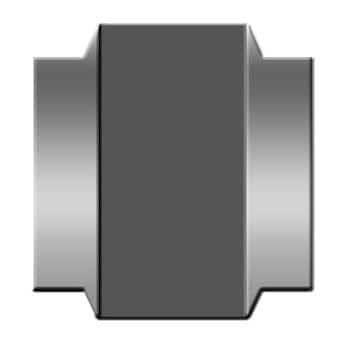

Product Images
