Abracon
ATFC-0201-10N-G-T

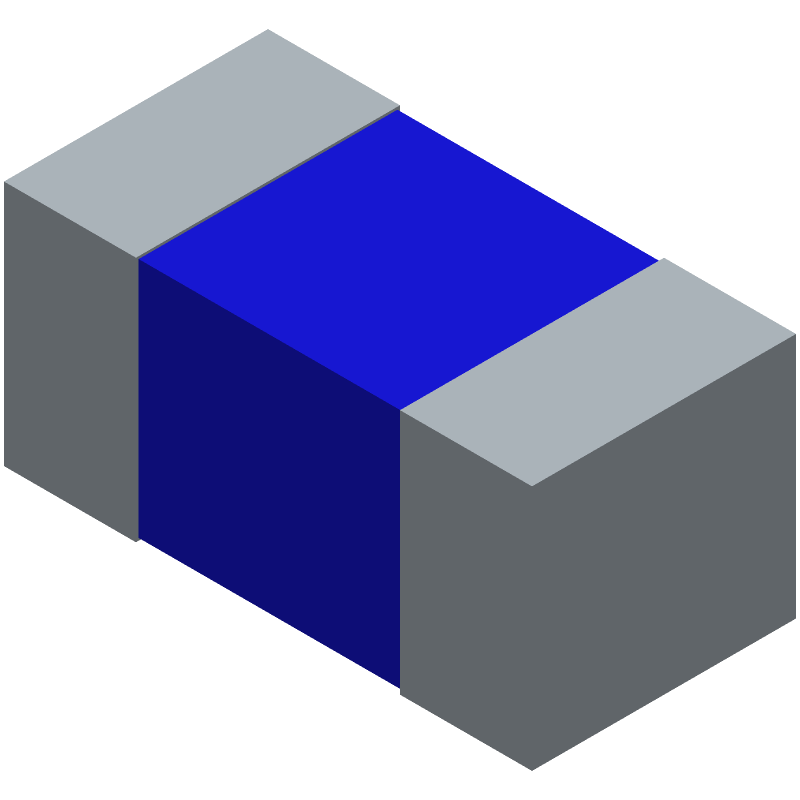

Inductor RF Thin Film 0.01uH 2% 500MHz 8Q-Factor Ceramic 0.08A 3.5Ohm DCR 0201 T/R
Package0201
Inductance10nH
Quick Jump:
Technical Specifications
Abracon ATFC-0201-10N-G-T technical specifications.
General
| Package/Case | 0201 |
| Core Material | Ceramic |
| Height | 0.23mm |
| Inductance | 10nH |
| Length | 0.6mm |
| Max DC Current | 80mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Q Factor | 8 |
| Self Resonant Frequency | 2GHz |
| Series | ATFC-0201 |
| Termination | SMD/SMT |
| Test Frequency | 500MHz |
| Tolerance | 2% |
| Width | 0.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ATFC-0201-10N-G-T Datasheet
Download the complete datasheet for Abracon ATFC-0201-10N-G-T to view detailed technical specifications.
No datasheet is available for this part.
