16MHz ceramic resonator with 0.5% frequency tolerance and 0.3% frequency stability. Features 22pF load capacitance and 40 Ohm impedance. Designed for surface mount applications with a 3-pin SMD/SMT package. Operates within a -25°C to 85°C temperature range and is RoHS compliant.
Frequency16MHz
PackageSMD/SMT
Capacitance22pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon AWSCR-16.00CV-T technical specifications.
General
Capacitance
22pF
Package/Case
SMD/SMT
Frequency
16MHz
Frequency Stability
0.3%
Frequency Tolerance
0.5%
Impedance
40R
Lead Free
Lead Free
Load Capacitance
22pF
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Self Resonant Frequency
16MHz
Series
AWSCR-CV
Termination
SMD/SMT
Tolerance
0.5%
Compliance
RoHS
Compliant
Datasheet
Abracon AWSCR-16.00CV-T Datasheet
Download the complete datasheet for Abracon AWSCR-16.00CV-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

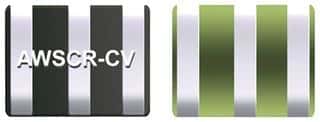

Product Images
