Advanced Linear Devices
EH301
EPAD General Power Management IC, 5.2V Output, 400mA Input Current, 0-70°C
The EH301 is a surface mount power management IC with an output voltage of 5.2V and an input current of 400mA. It operates within a temperature range of 0 to 70°C. The device is packaged in a module format and is available in bulk packaging. The EH301 is compliant with RoHS regulations but does not meet Reach SVHC compliance requirements.
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Advanced Linear Devices EH301 technical specifications.
General
| Package/Case | Module |
| Input Current | 400mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Output Voltage | 5.2V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EPAD® |
Compliance
| RoHS | Compliant |
Datasheet
Advanced Linear Devices EH301 Datasheet
Download the complete datasheet for Advanced Linear Devices EH301 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

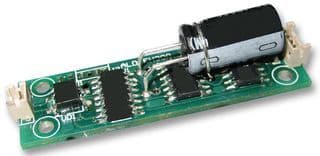

Product Images
