Technical Specifications
Aim-Tti QL355T-P technical specifications.
General
Current - Output 2
3A
Current - Output 3
500mA
Height
160mm
Interface
USB
Length
290mm
Max Operating Temperature
40°C
Min Operating Temperature
5°C
Max Output Current
5A
Max Output Voltage
35V
Min Output Voltage
0V
Min Supply Voltage (AC)
500V
Mount
Rack
Number of Outputs
3
Operating Supply Voltage
230V
Output Connector
Binding Post Terminal
Output Current
5A
Output Voltage
35V
Reach SVHC Compliant
No
Voltage - Output 2
35V
Voltage - Output 3
6V
Weight
10kg
Width
280mm
Compliance
RoHS
Compliant
Datasheet
Aim-Tti QL355T-P Datasheet
Download the complete datasheet for Aim-Tti QL355T-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

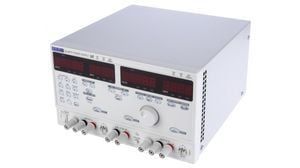

Product Images
