Technical Specifications
Aimtec AMEL10-24SAZ technical specifications.
General
Package/Case
DIP
Efficiency
79%
Height
0.99inch
Leakage Current
250uA
Length
2.22inch
Max Current Rating
230mA
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Current
420mA
Max Output Power
10W
Mount
PCB
Number of Outputs
1
Output Power
10W
Output Voltage
24V
RoHS Compliant
Yes
Weight
70g
Width
1.21inch
Compliance
RoHS
Compliant
Datasheet
Aimtec AMEL10-24SAZ Datasheet
Download the complete datasheet for Aimtec AMEL10-24SAZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

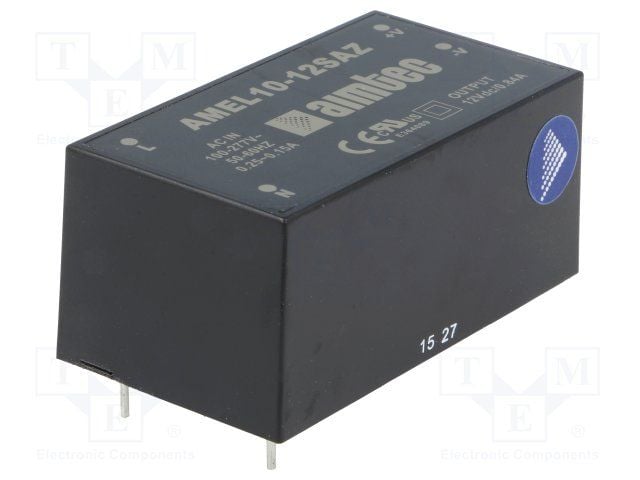

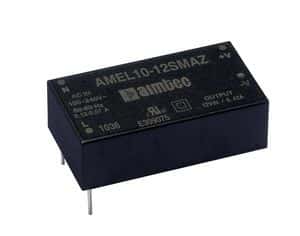

Product Images
