Allegro Microsystems
A1120LUA-T
Hall Effect Sensor, Linear, Latching, Omnipolar, 25mA, 24V, Through Hole SIP
The A1120LUA-T is a Hall effect sensor with a linear, latching, and omnipolar output. It operates within a temperature range of -40°C to 150°C and has a maximum output current of 25mA. The device is supplied with a maximum voltage of 24V and a minimum voltage of 3V. It is packaged in a SIP form factor and is suitable for through-hole mounting. The A1120LUA-T is compliant with RoHS regulations and is part of Allegro Microsystems' automotive series, which meets AEC-Q100 standards.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Allegro Microsystems A1120LUA-T technical specifications.
General
| Bandwidth | 800kHz |
| Package/Case | SIP |
| Height | 3.02mm |
| Length | 4.09mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Current | 4mA |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Output Current | 25mA |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Width | 1.52mm |
Compliance
| RoHS | Compliant |
Datasheet
Allegro Microsystems A1120LUA-T Datasheet
Download the complete datasheet for Allegro Microsystems A1120LUA-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

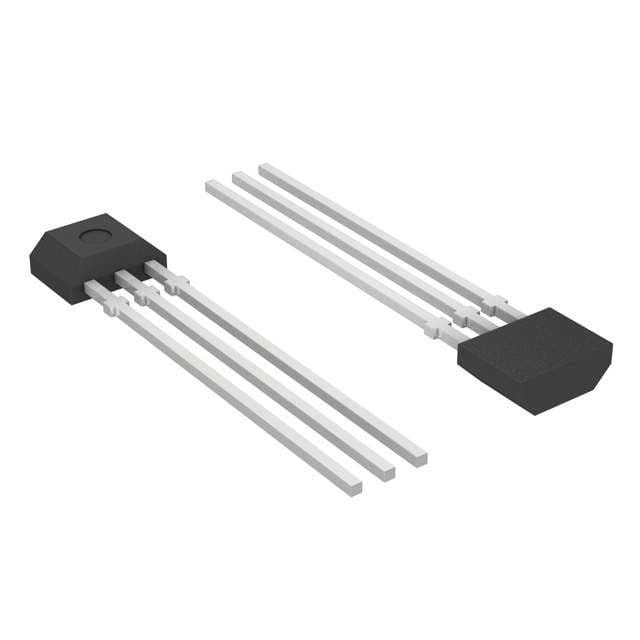

Product Images
