Allegro Microsystems
A1250LUA-T
Hall Effect Sensor, -2.5mT Min, 2.5mT Max, 30-60mA, BICMOS, Plastic/epoxy, Rectangular, 3 Pin, Through Hole Mount, SIP-3
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Allegro Microsystems A1250LUA-T technical specifications.
General
Package/Case
SIP
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
60mA
Max Supply Current
4mA
Max Supply Voltage
24V
Min Supply Voltage
3V
Mount
Through Hole
Output Current
60mA
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Allegro Microsystems A1250LUA-T Datasheet
Download the complete datasheet for Allegro Microsystems A1250LUA-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

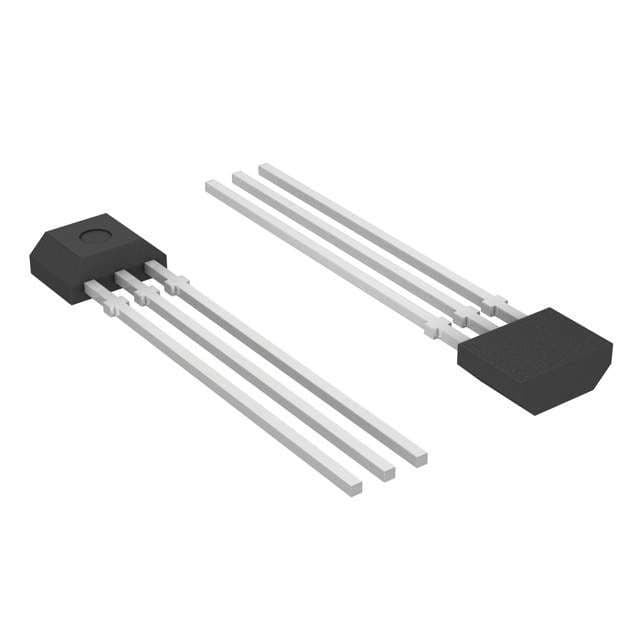

Product Images
