2-channel stepper motor driver IC featuring DMOS technology and a parallel interface. Delivers up to 1A output current with a maximum collector current of 1A, operating from a 2.5V to 9V supply. This surface-mount component is housed in a 4mm x 4mm QFN package with a 0.75mm height, suitable for operation between -20°C and 85°C.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems A3906SESTR-T technical specifications.
General
Package/Case
QFN
Height
0.75mm
Interface
Parallel
Length
4mm
Max Collector Current
1A
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Current
10.5mA
Max Supply Voltage
9V
Min Supply Voltage
2.5V
Motor Type
Stepper
Mount
Surface Mount
Number of Channels
2
Number of Outputs
2
Output Current
1A
Output Voltage
9V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Technology
DMOS
Termination
SMD/SMT
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Allegro Microsystems A3906SESTR-T Datasheet
Download the complete datasheet for Allegro Microsystems A3906SESTR-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

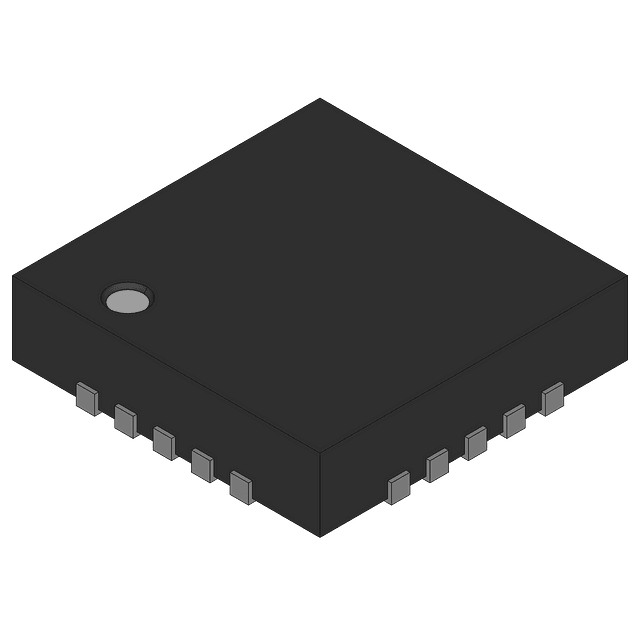

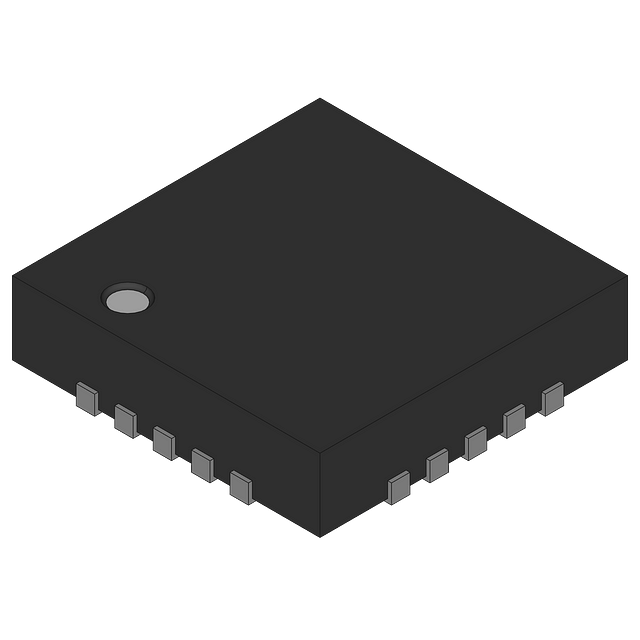

Product Images
