The A3967SLB-T is a 4-channel stepper motor driver from Allegro Microsystems with a maximum output current of 850mA and a maximum output voltage of 30V. It operates over a temperature range of -20°C to 150°C and is packaged in a surface-mount SOIC package. The device is RoHS compliant and suitable for use in lead-free applications.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems A3967SLB-T technical specifications.
General
| Package/Case | SOIC |
| Interface | Logic |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 850mA |
| Max Output Voltage | 30V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Motor Type | Stepper |
| Mount | Surface Mount |
| Number of Outputs | 4 |
| Output Current | 750mA |
| Output Voltage | 30V |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | BIPOLAR |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Allegro Microsystems A3967SLB-T Datasheet
Download the complete datasheet for Allegro Microsystems A3967SLB-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

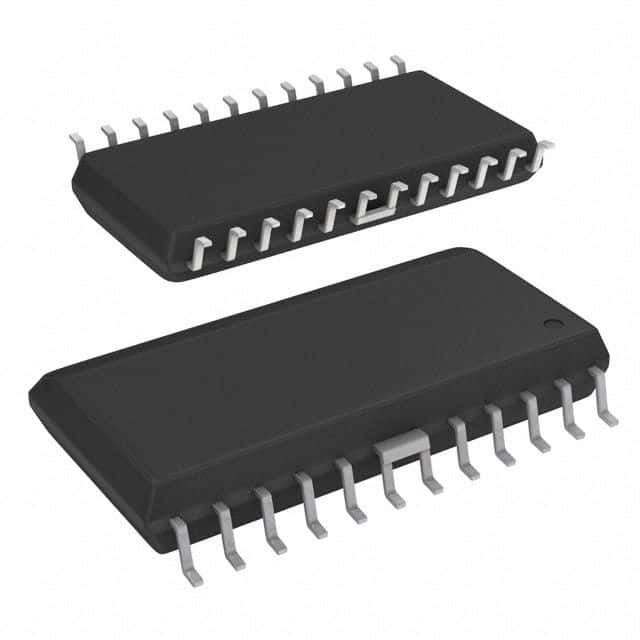

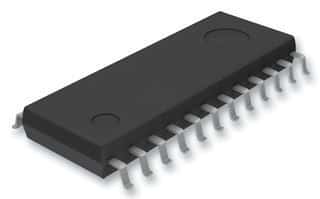

Product Images
