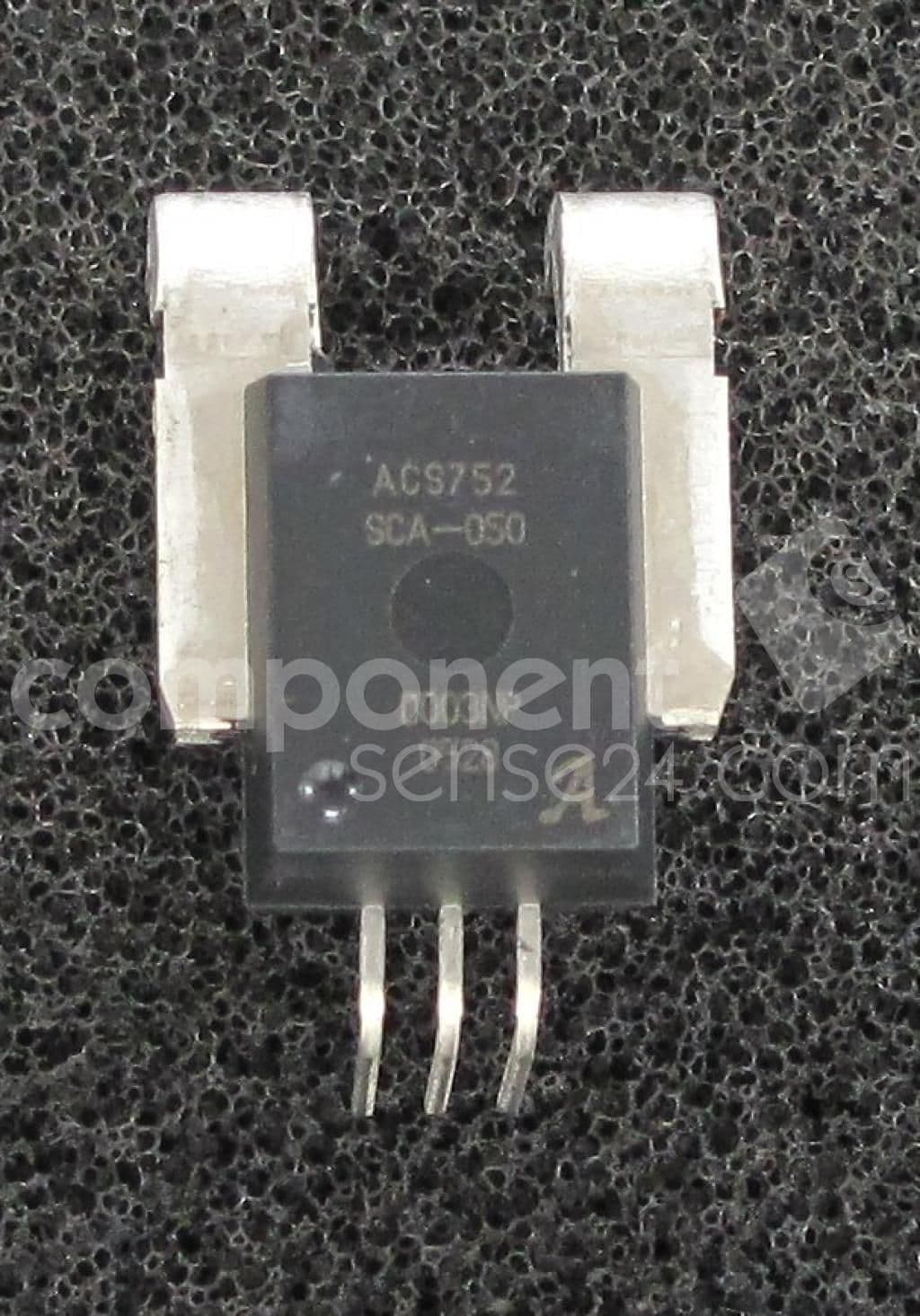

The ACS752SCA-050 is a 50A Hall effect current sensor with a bandwidth of 50kHz and an operating temperature range of -20°C to 85°C. It is available in a module package with through hole mounting. The sensor has a sensitivity of 40mV/A and a response time of 8us. It is compliant with RoHS and SVHC regulations and is lead free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems ACS752SCA-050 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 1% |
| Bandwidth | 50kHz |
| Package/Case | Module |
| Current Sensing | 50A |
| Frequency | 50kHz |
| Lead Free | Lead Free |
| Linearity | 4% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 10mA |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Current | 10mA |
| Reach SVHC Compliant | Yes |
| Response Time | 8us |
| RoHS Compliant | Yes |
| Sensitivity | 40mV/A |
| RoHS | Compliant |
