Alpha & Omega
AO6401A
Small Signal Field-Effect Transistor, 5A I(D), 30V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, TSOP-6
PackageTSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Alpha & Omega AO6401A technical specifications.
General
| Package/Case | TSOP |
| Continuous Drain Current (ID) | 5A |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance | 1.18nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Rds On Max | 44mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Alpha & Omega AO6401A Datasheet
Download the complete datasheet for Alpha & Omega AO6401A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

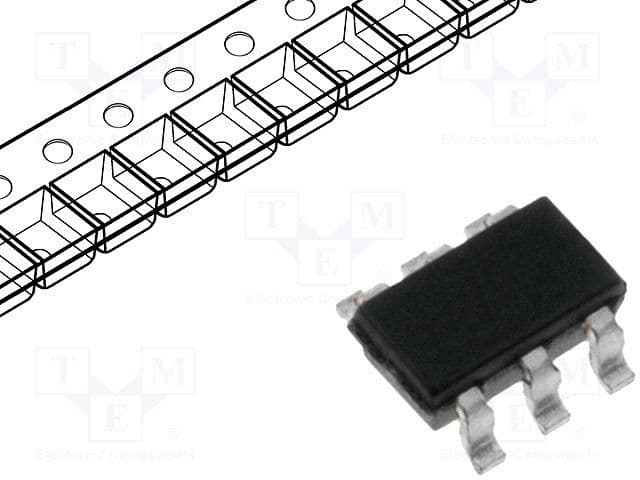

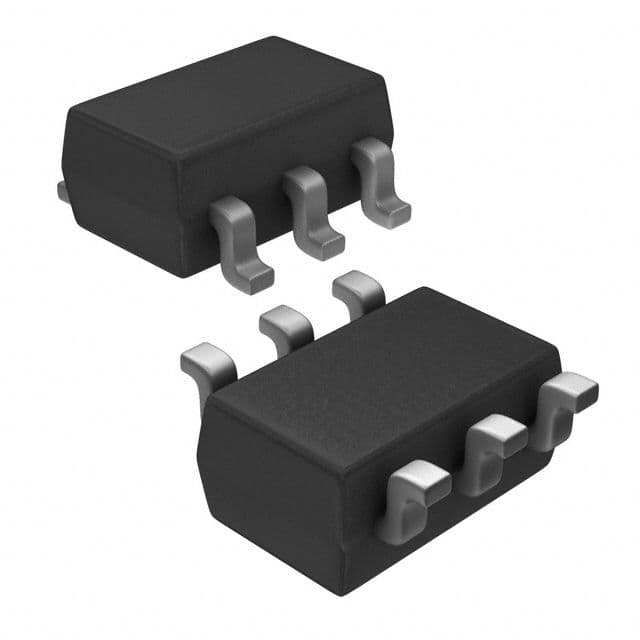

Product Images
