Technical Specifications
Alpha & Omega AO7403 technical specifications.
General
Continuous Drain Current (ID)
700mA
Drain to Source Voltage (Vdss)
20V
Input Capacitance
114pF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
350mW
Mount
Surface Mount
Packaging
Tape and Reel
Rds On Max
470mR
RoHS Compliant
Yes
Compliance
RoHS
Not Compliant
Datasheet
Alpha & Omega AO7403 Datasheet
Download the complete datasheet for Alpha & Omega AO7403 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

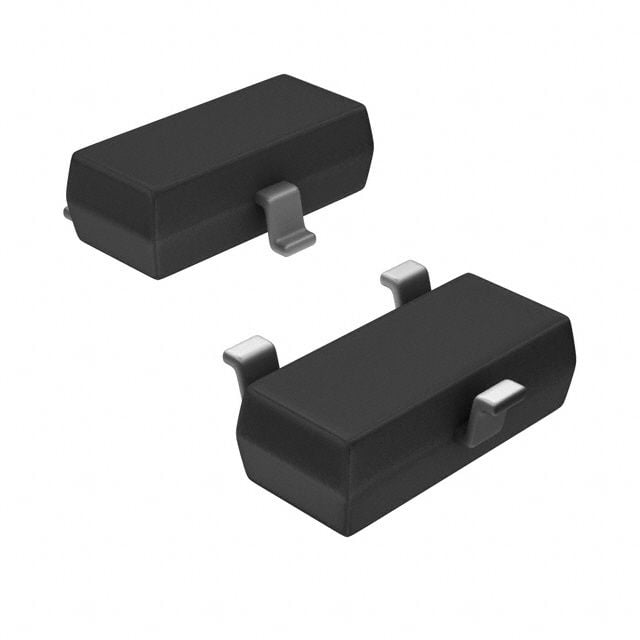

Product Images
