Technical Specifications
Alpha & Omega AO7800 technical specifications.
General
| Continuous Drain Current (ID) | 900mA |
| Drain to Source Voltage (Vdss) | 20V |
| FET Type | 2 N-Channel |
| Input Capacitance | 120pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Rds On Max | 300mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Alpha & Omega AO7800 Datasheet
Download the complete datasheet for Alpha & Omega AO7800 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

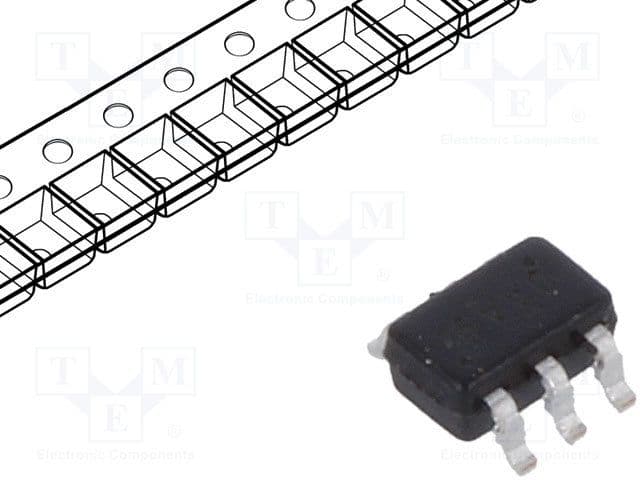

Product Images
