Alpha & Omega
AOI409
Power Field-Effect Transistor, 26A I(D), 60V, 0.055ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-251, TO-251A, IPAK-3
PackageTO-251-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Alpha & Omega AOI409 technical specifications.
General
| Package/Case | TO-251-3 |
| Continuous Drain Current (ID) | 26A |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance | 3.6nF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 60W |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Rds On Max | 40mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Alpha & Omega AOI409 Datasheet
Download the complete datasheet for Alpha & Omega AOI409 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

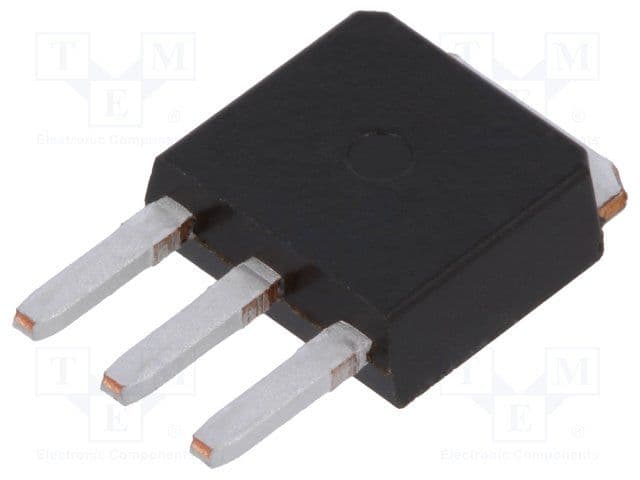

Product Images
