Technical Specifications
Alpha & Omega AON2408 technical specifications.
General
Package/Case
DFN EP
Continuous Drain Current (ID)
8A
Drain to Source Voltage (Vdss)
20V
Input Capacitance
782pF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.8W
Mount
Surface Mount
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.8W
Radiation Hardening
No
Rds On Max
14.5mR
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Alpha & Omega AON2408 Datasheet
Download the complete datasheet for Alpha & Omega AON2408 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

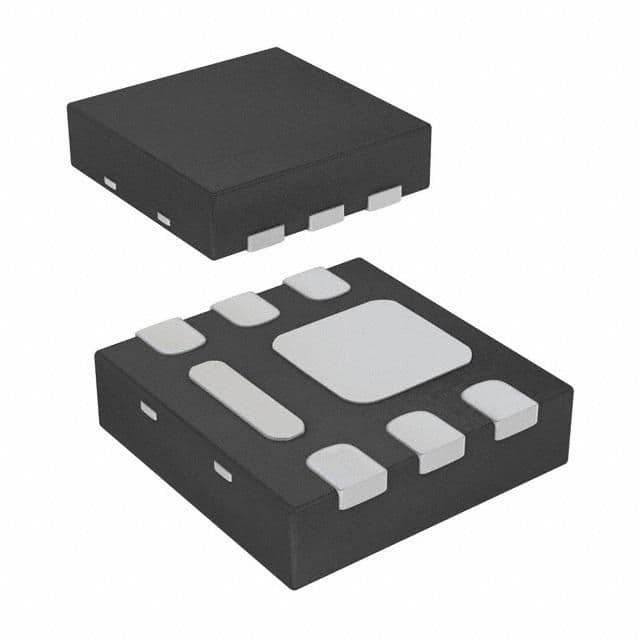

Product Images
