Technical Specifications
Alpha & Omega AON4421 technical specifications.
General
Package/Case
DFN
Continuous Drain Current (ID)
8A
Drain to Source Voltage (Vdss)
30V
Input Capacitance
1.12nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2.5W
Mount
Surface Mount
Number of Elements
1
Packaging
Tape and Reel
Power Dissipation
2.5W
Radiation Hardening
No
Rds On Max
26mR
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Alpha & Omega AON4421 Datasheet
Download the complete datasheet for Alpha & Omega AON4421 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

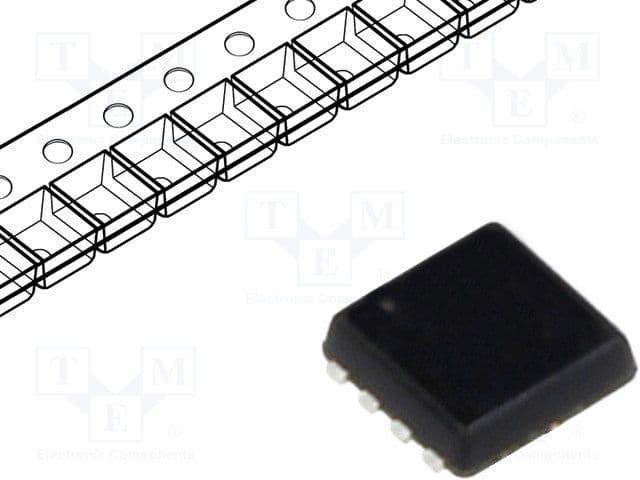

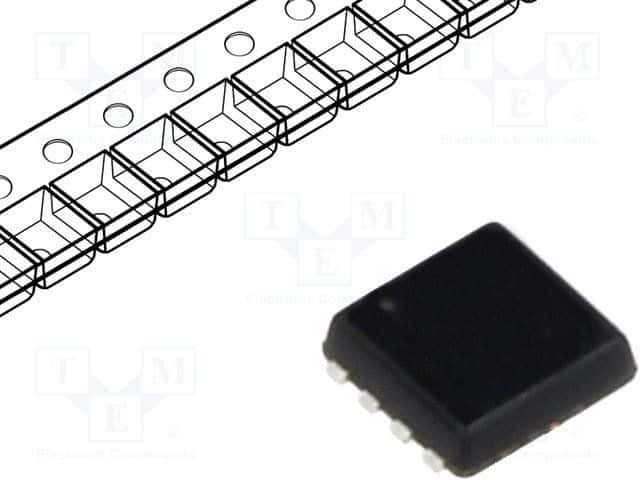

Product Images
