The AON6260 is a surface mount N-channel MOSFET with a maximum operating temperature range of -55°C to 150°C. It has a maximum drain to source voltage of 60V and a continuous drain current of 85A. The device is packaged in a DFN package and is available on tape and reel. The AON6260 is RoHS compliant and has a maximum power dissipation of 104W.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Alpha & Omega AON6260 technical specifications.
General
| Package/Case | DFN |
| Continuous Drain Current (ID) | 85A |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance | 5.578nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 104W |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Rds On Max | 2.4mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Alpha & Omega AON6260 Datasheet
Download the complete datasheet for Alpha & Omega AON6260 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

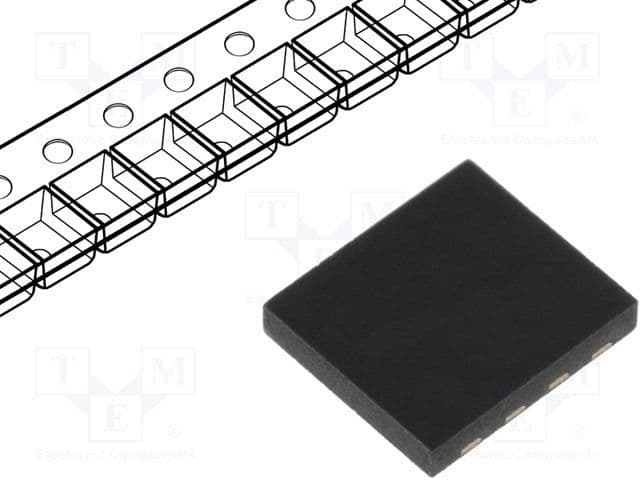

Product Images
