The AON6292 is a power MOSFET with a maximum drain to source voltage of 100V and a continuous drain current of 85A. It is packaged in a surface mount DFN package and is suitable for operation over a temperature range of -55°C to 150°C. The device has a maximum power dissipation of 156W and a maximum on-resistance of 6mR. The AON6292 is RoHS compliant and is available on tape and reel.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Alpha & Omega AON6292 technical specifications.
General
| Package/Case | DFN |
| Continuous Drain Current (ID) | 85A |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance | 3.83nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 156W |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Rds On Max | 6mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Alpha & Omega AON6292 Datasheet
Download the complete datasheet for Alpha & Omega AON6292 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

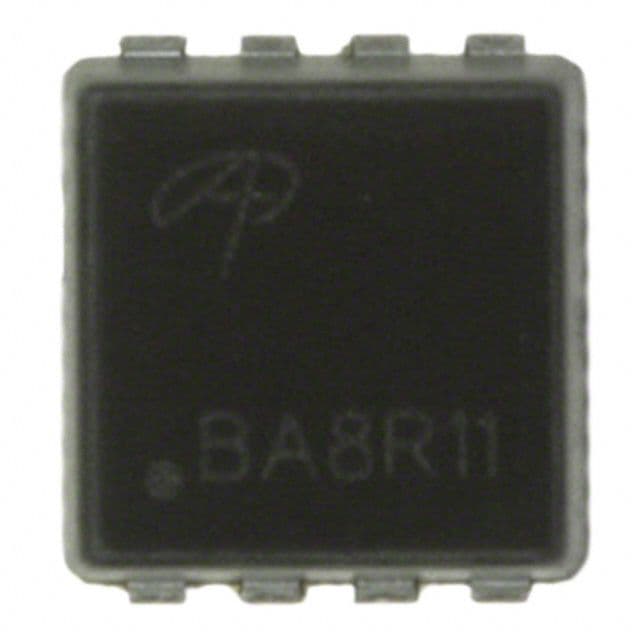

Product Images
